FOUR IN ONE PLANT

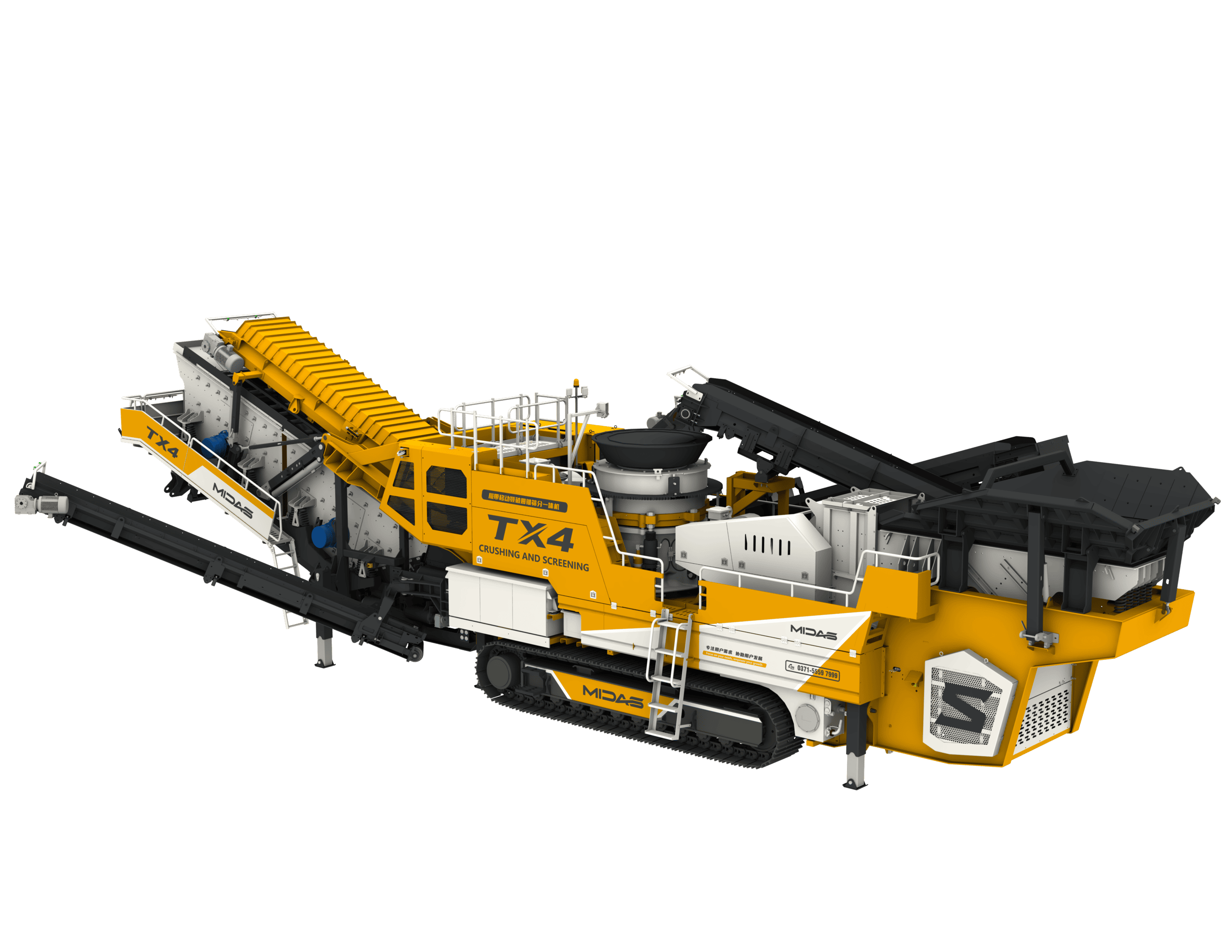

TX4 Tracked Mobile Crushing & Screening Plant
PRODUCT OVERVIEW
TX4 is a masterpiece in the field of tracked mobile hard rock crushing and screening plant. It creatively integrates four units: vibrating feeder, jaw crusher, multi-cylinder hydraulic cone crusher, and three-layer two-stage screen. Through exquisite structural design, TX4 achieves the screening effect of split hard rock production lines, opening a new journey of mobile hard rock crushing, and is Midas's breakthrough contribution to the industry.
Application Scenarios:
- Secondary and tertiary crushing and screening of medium to high hardness materials
- Hard rock production in space-constrained sites
- Crushing and sand production of high hardness stone materials (SiO₂ content higher than 75%) such as river pebbles, granite, and diabase in quarries
- Pre-ball mill crushing of iron ore in large mineral processing plants
Equipment Specifications
Feeding height(mm)
4100
Feeder width × length(mm)
1100 × 3737
Feeder Power(kw)
2 × 3.7kw
Layer number of mesh
3
Vibrating screen width × length(mm)
2000 × 2500/2000 × 3500
Return screen Power(kw)
4 × 6kw
Main conveyor width × length (mm)
1200 × 15500
Finished material side conveyor width × length (mm)
500 × 6125
Under screen conveyor width × length (mm)
1200 × 7570
Return conveyor1 width × length (mm)
1000 × 9760
Return conveyor2 width × length (mm)
1000 × 6260
Total power(kw)
452
Processing capacity(t/h)
200-400
Speed(km/h)
0.6-1
Total Weight(t)
115
Transportation size(mm)
20700 × 5100 × 4000
Product Advantages
Cost Efficiency
Save 100kW total power
compared to a modular hard rock production line, reducing energy consumption by 20%
Space Saving
Site space reduced by approximately 50% than traditional configurations
Equipment Cost Saving
Higher cost-performance ratio
than three separate crawler production lines
Transfer Efficiency
Only one piece of equipment
needs to be moved onsite for loading
Crushing Performance
Material is pre-screened with a
large screening surface before entering the cone crusher, enhancing cone crushing efficiency
Labor Saving
Maintenance is required for
only a single unit, reducing personnel and simplifying management
Easy Maintenance
Modular structure design for
convenient installation and maintenance
