IMPACT CRUSHING & SCREENING

TX3IE Tracked Mobile IMPACT CRUSHING & SCREENING

TX3IE

Capacity

200-400 t/h

Complete Machine Power

376.7 kw

Maximum Output Size

0-0 mm

PRODUCT OVERVIEW

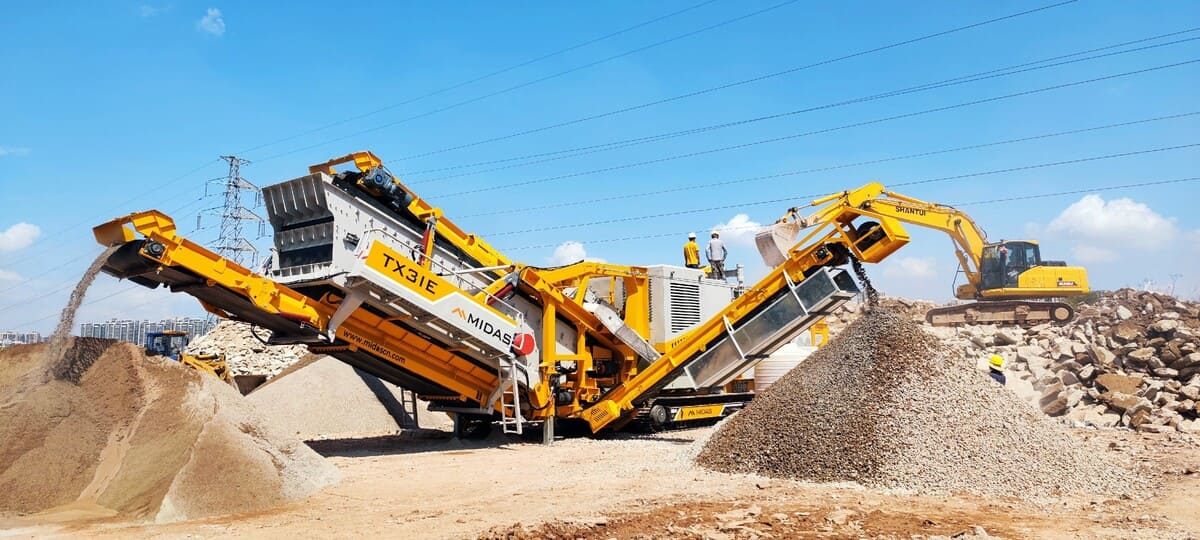

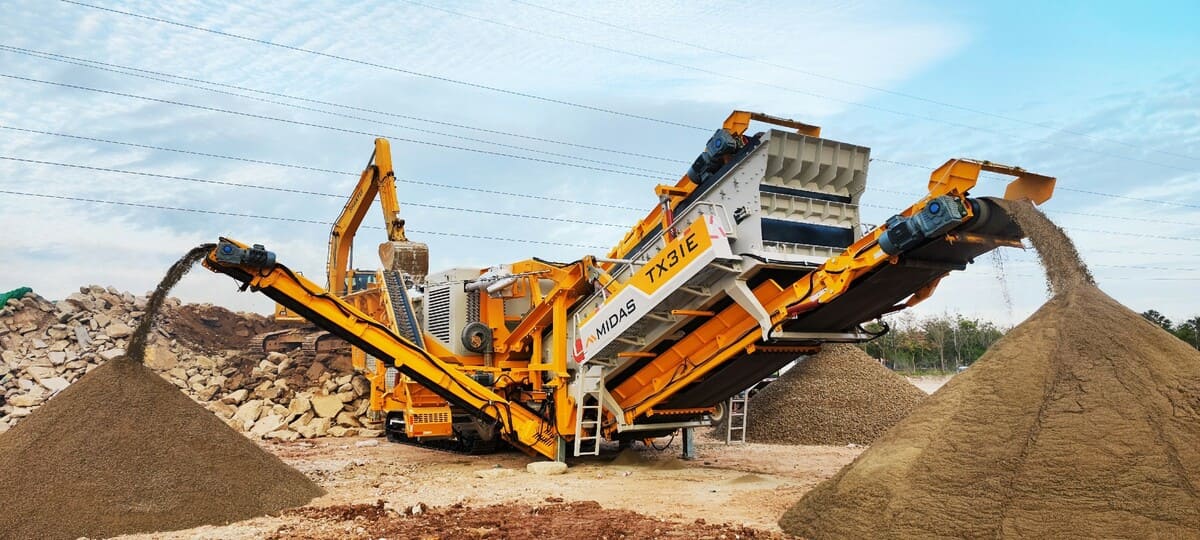

TX3IE stands as the high-efficiency leader in track-mounted medium-hard rock crushing and screening. It integrates three core units: a vibrating feeder, cone crusher, and three-layer double-stage screen, delivering performance equivalent to standalone production lines. Equipped with an independent pre-screening device that further enhances crushing efficiency, and featuring an upgraded diesel-electric hybrid power system, it offers one-button startup for immediate operation upon site arrival.

Application Scenarios:

Secondary and tertiary crushing/screening of medium to high-hardness materials
Secondary crushing and screening of hard rocks (granite, basalt, pebbles, diabase, etc.)

Model Code	Weight (T)	Power (KW)	Main Unit	Main Dimensions	Features
MI260RTE	68	322	PF1213	1200*1300	Double-layer screening, side discharge belt, Oil and electricity dual-purpose system 400kw
MI350RTE	74	352	PF1315	1300*1500	Double-layer screening, side discharge belt, Oil and electricity dual-purpose system 500kw
TX2IE	65	325.3	PF1213	1200*1300	Triple-layer screening, double side discharge belt, Oil and electricity dual-purpose system 400kw
TX3IE	88	376.7	PF1315	1300*1500	Pre-screening system, triple-layer screening, double side discharge belt, Oil and electricity dual-purpose system 500kw
