VSI CRUSHER
MV-S1240 Track Mobile VSI Crusher
MV-S1240
Max Capacity
100-500 t/h
Complete Machine Power
316.2-439 kw
Maximum Output Size
0-0 mm
PRODUCT OVERVIEW
The Midas MV-S Series Track Mobile Sand Making PLant features an advanced impeller and specialized sealing structure for high efficiency and durability. Available in external electric, diesel-electric hybrid, or fully hydraulic drive modes, it is ideal for tertiary sand making and aggregate shaping. The unit delivers high throughput, superior particle shape, and flexible mobility.
Application Scenarios:
- Aggregate Shaping
- Metallic & Non-metallic Ores
- Construction Materials
- Manufactured Sand Production
- Metallurgical Slag
| Model Code | Weight (T) | Power (KW) | Main Unit | Main Dimensions | Features |
|---|---|---|---|---|---|
| MV-S900R | 42 | 316.2 | MBHS0925 | 950*230 | Material return system |
| MV-S900RTE | 48 | 328.5 | MBHS0925 | 950*230 | Double layer screening, side discharge conveyor, Oil and electricity dual-purpose system 500kw |
| MV-S1240 | 48 | 434 | MBHS1222 | 1200*230 | |
| MV-S1240E | 58 | 439 | MBHS1222 | 1200*230 | Oil and electricity dual-purpose system 600kw |
Related Cases
Learn More

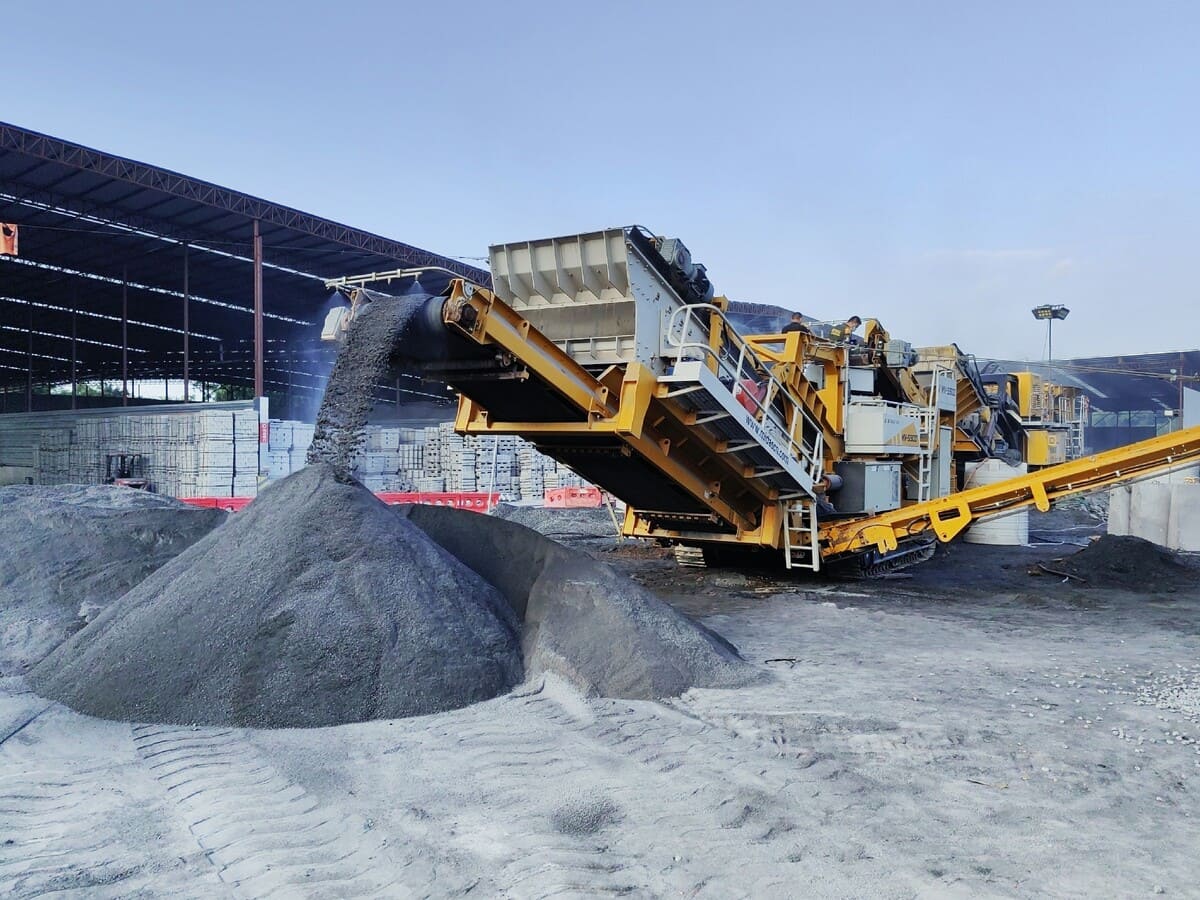

- Hard Rock Crushing Project
- Equipment Model: MV-S1240

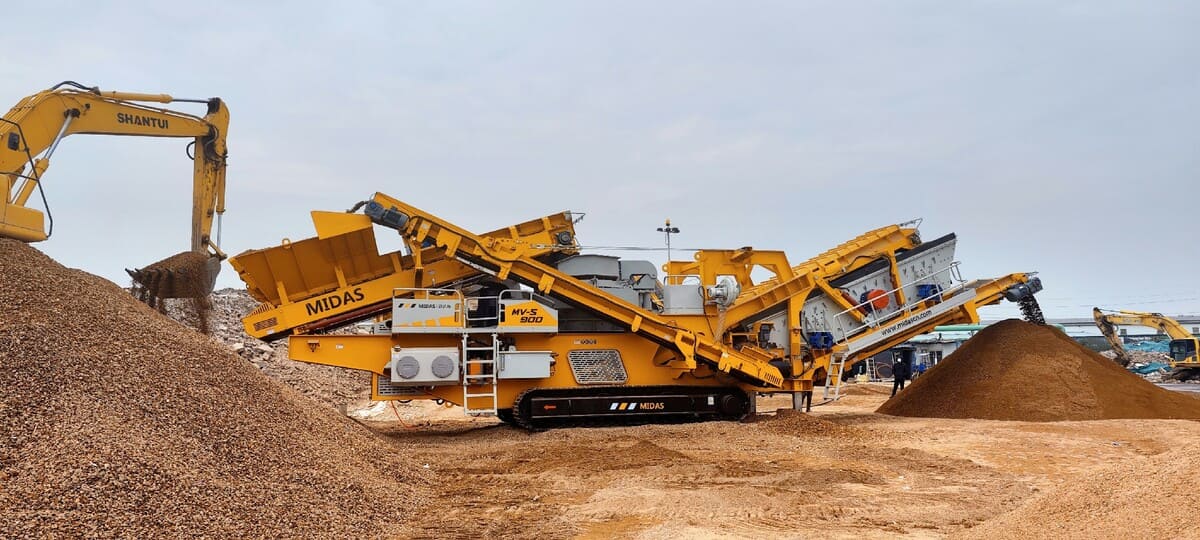

- Quartz Sand Making Project
- Equipment Model: MV-S900

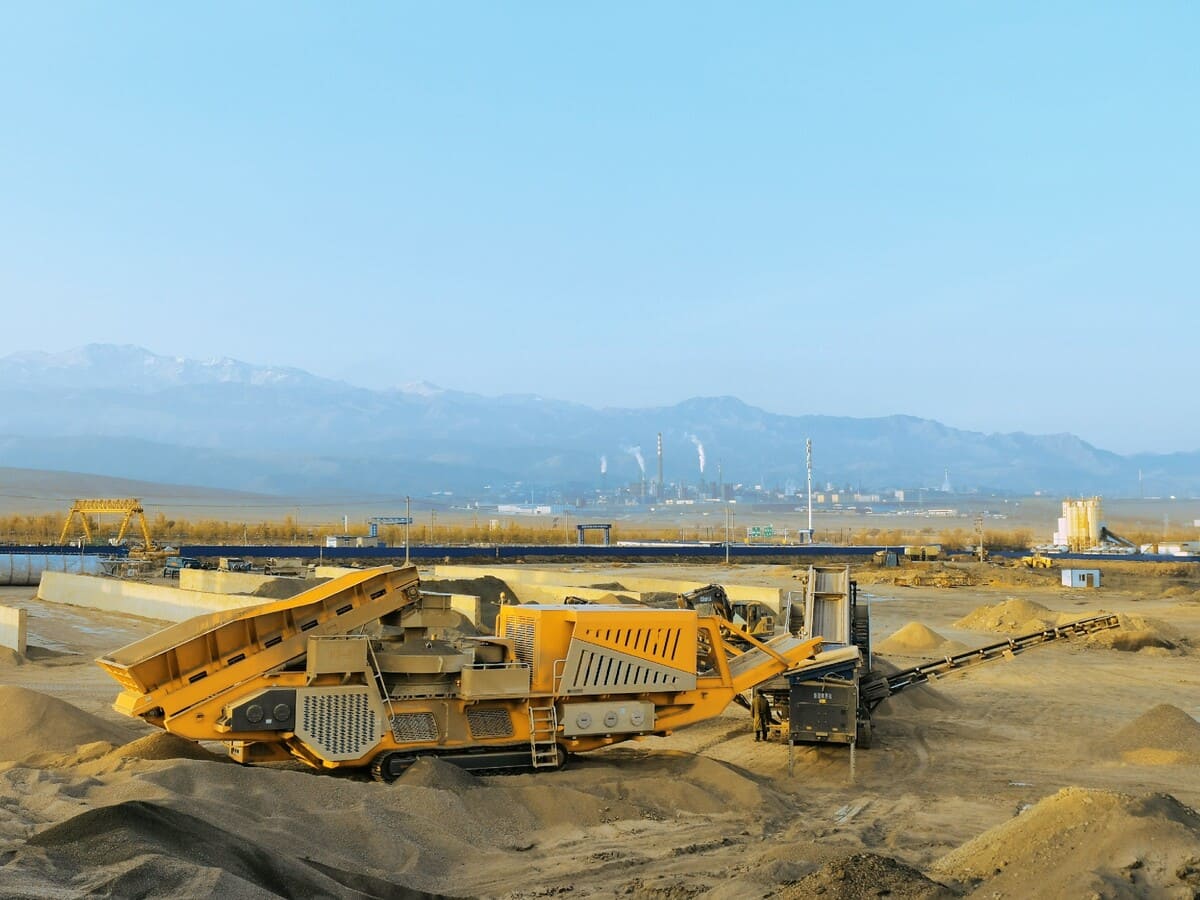

- Pebble Sand Making Project
- Equipment Model: MV-S1240
