HEAVY-DUTY CRUSHING

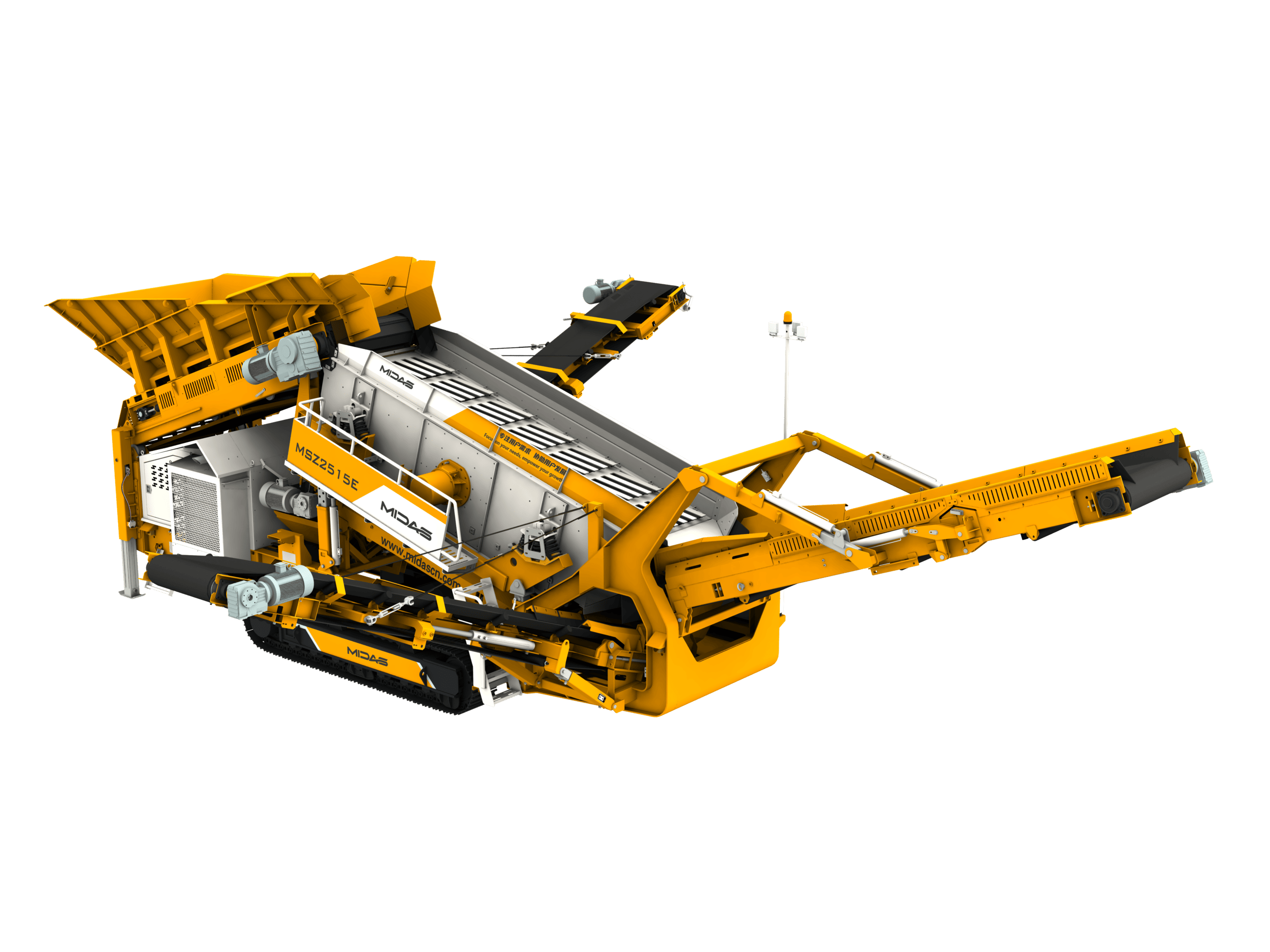

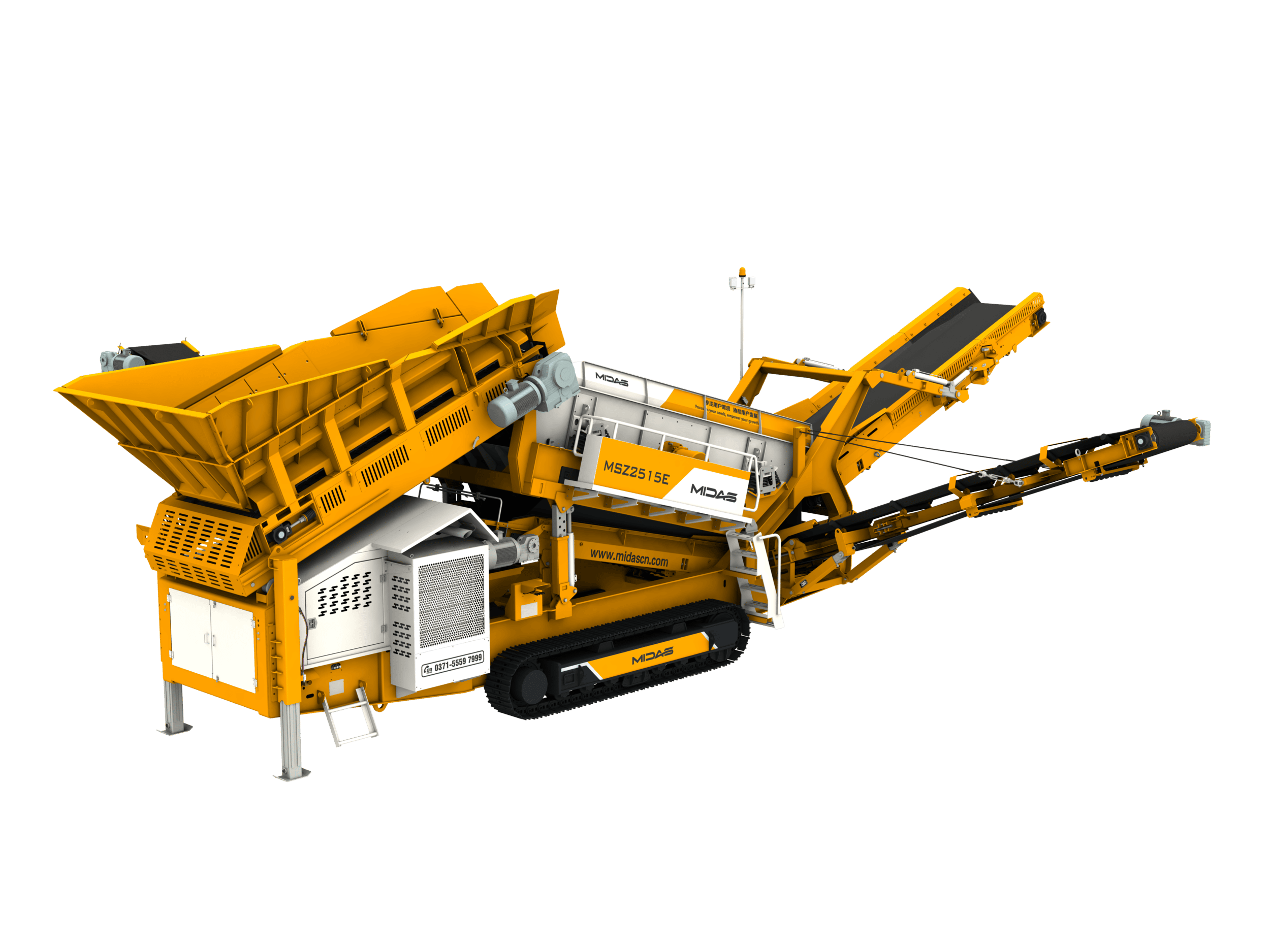

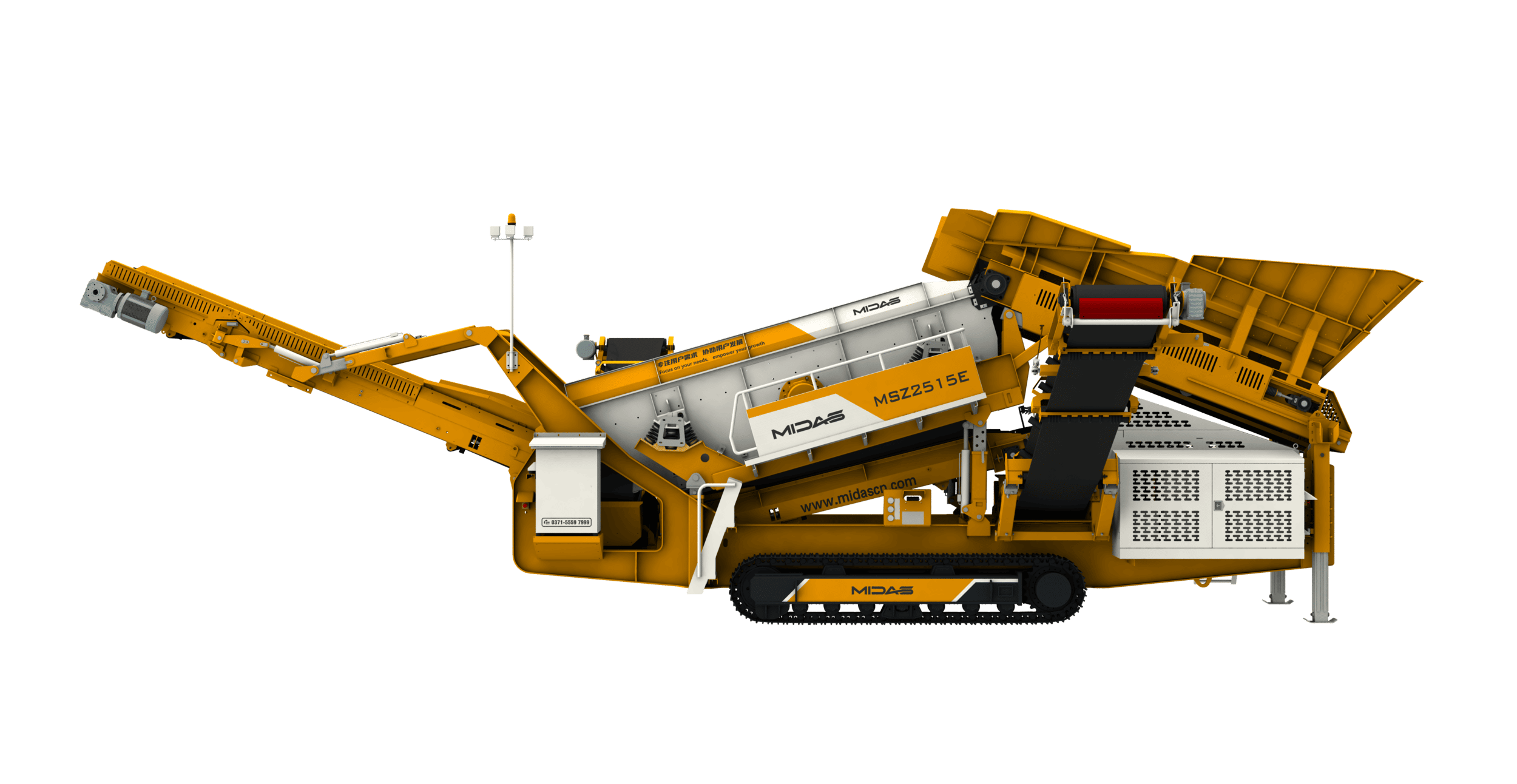

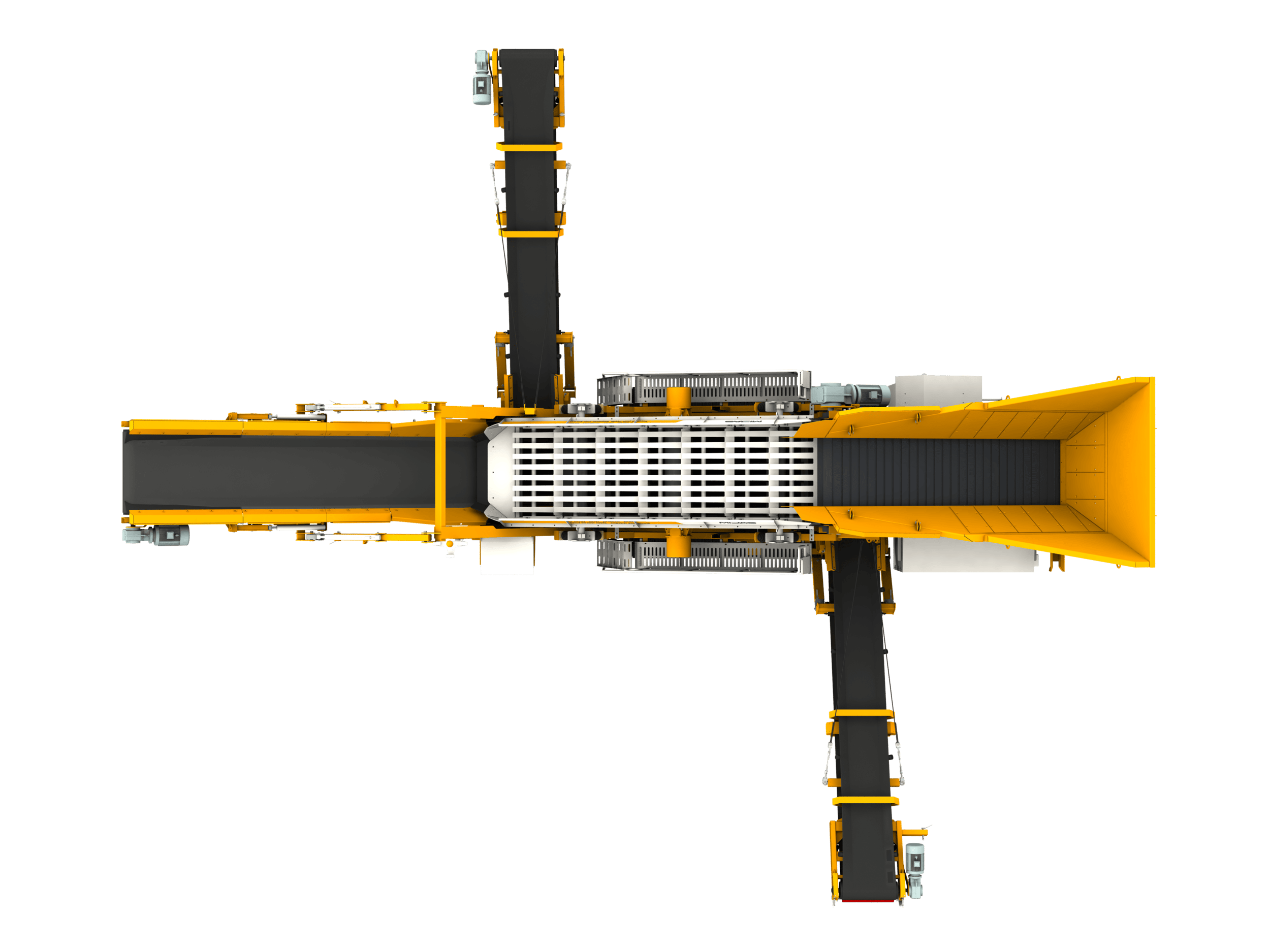

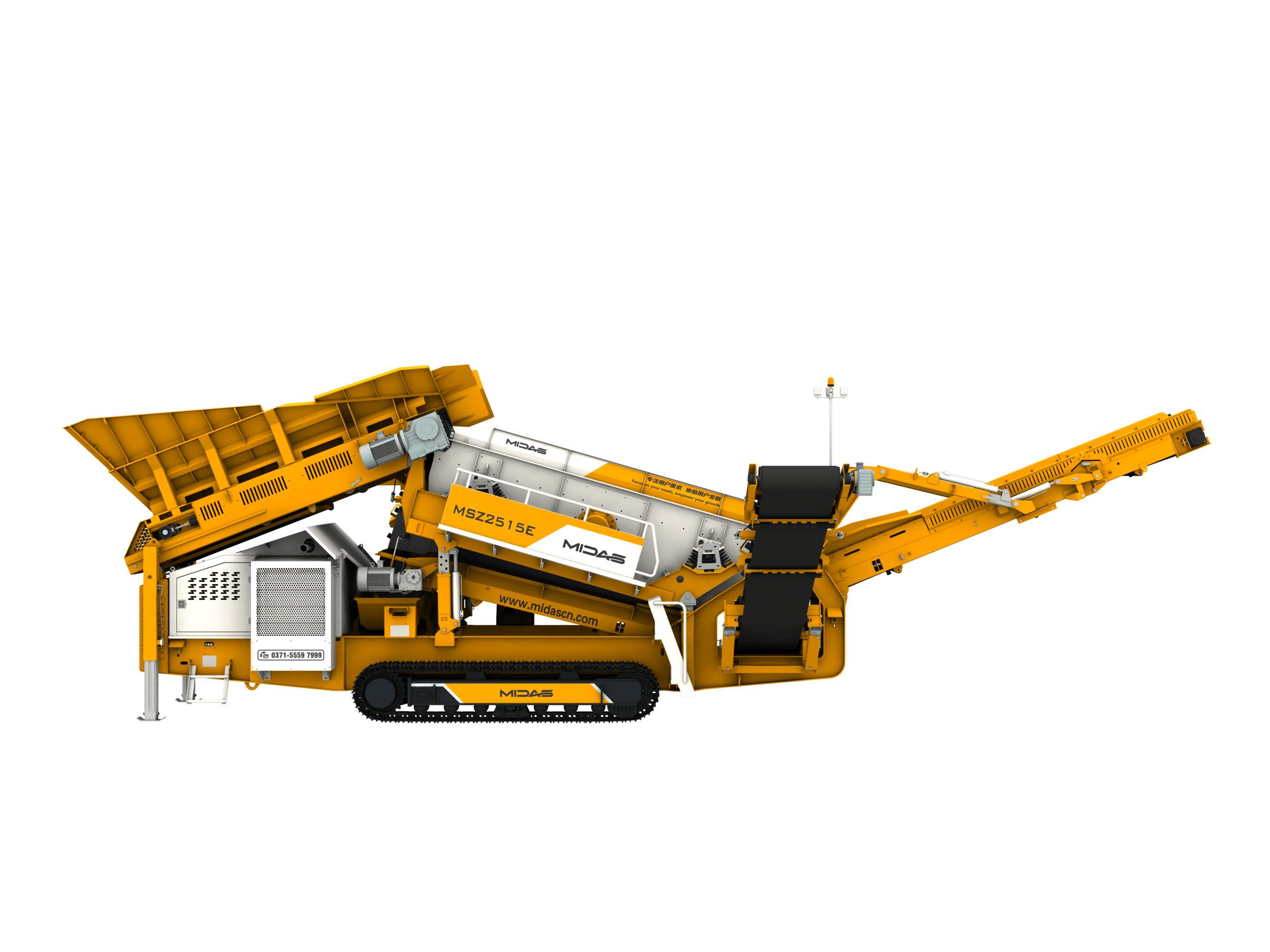

MSZ2515E Tracked Mobile Heavy-duty Screening Plant
MSZ2515E
Capacity
280-680
t/h
Complete Machine Power
66-101
kw
Maximum Output Size
0-0
mm
PRODUCT OVERVIEW
MSZ2515E equipped with a plate-type high-torque feeder, first-layer heavy-duty grizzly screen, and 1.2-meter extra-wide patterned conveyor belt. This primary screening equipment effectively handles oversized materials processing and transfer, delivering exceptional performance in specialized applications such as soil-rock separation and preliminary construction waste screening.
Application Scenarios:
- Primary screening for soil-rock separation
- Mining operations
- Construction waste screening
- Coal gangue screening
- Sand and aggregate screening
| Model Code | Weight (T) | Power (KW) | Main Unit | Main Dimensions | Features |
|---|---|---|---|---|---|
| MSZ2515 | 34 | 66 | SZ2515 | 5000*1500 | |
| MSZ2515E | 35 | 66 | SZ2515 | 5000*1500 | Oil and electricity dual-purpose system 120kw |
| MSZ2618 | 40 | 77.5 | SZ2618 | 6000*1800 | |
| MSZ2618E | 42 | 77.5 | SZ2618 | 6000*1800 | Oil and electricity dual-purpose system 150kw |
| MSZ3618 | 46 | 101 | SZ3618 | 6000*1800 | |
| MSZ3618E | 48 | 101 | SZ3618 | 6000*1800 | Oil and electricity dual-purpose system 150kw |
